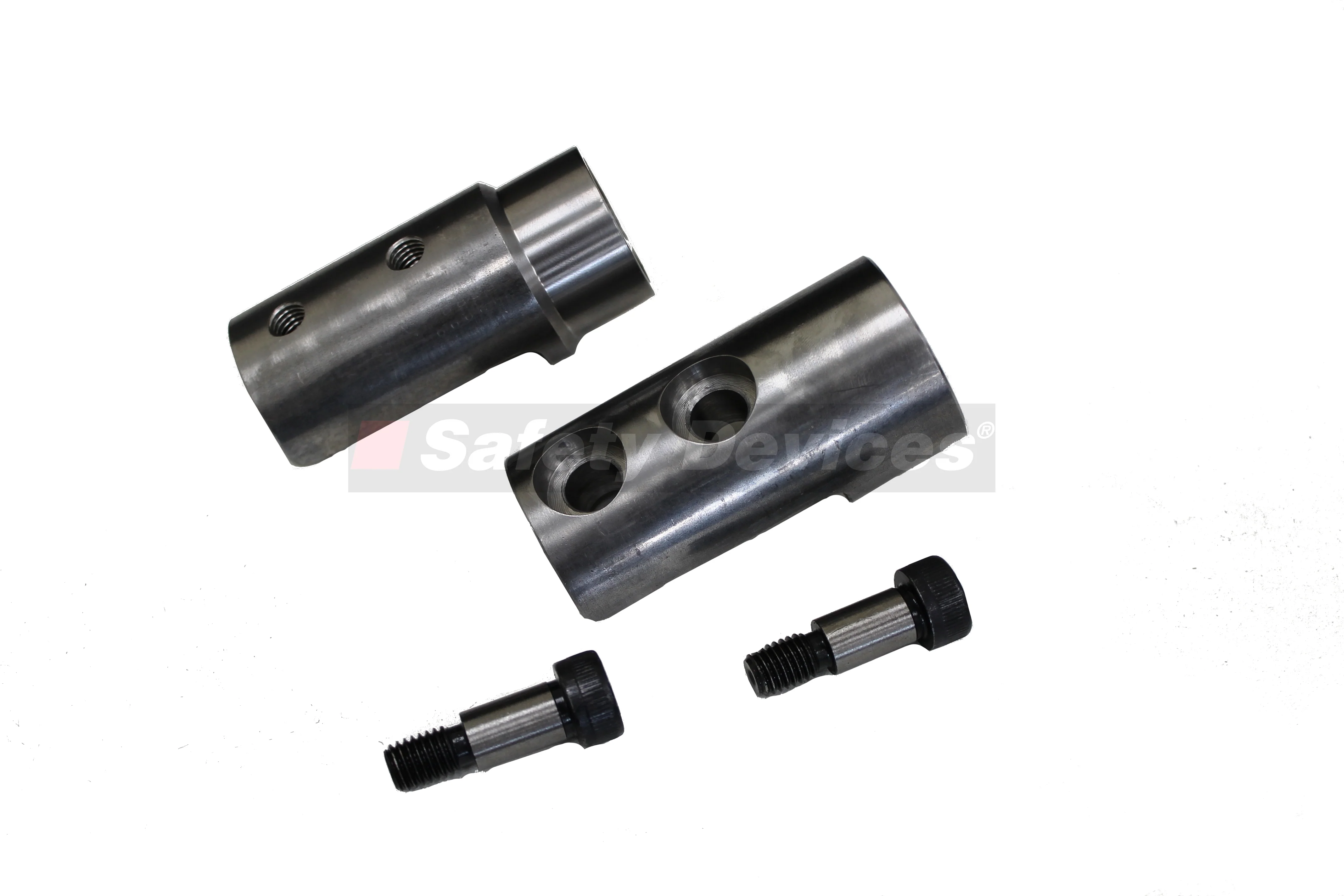

Safety Devices FIA homologated lap joint, designed to provide a stiff bolted tube joint while avoiding fastener protrusions. The male end is machined to the correct size to be inserted into the open tube end, while the female end will require profiling to fit onto the joining tube prior to welding.

Male to male designs are also available to order without further charges, however to place an order, please email us on [email protected] specifying this requirement.

Note: FIA homologated joints are only compliant when used in FIA or MSUK homologated ROPS design.

Sizes Available

• 38.10mm x 2.03mm (minimum order qty. 10)
• 38.10mm x 2.64mm
• 38.10mm x 3.25mm (minimum order qty. 10)
• 40.00mm x 2.00mm (not currently FIA homologated)

• 44.45mm x 2.03mm (minimum order qty. 10)
• 44.45mm x 2.64mm
• 44.45mm x 3.25mm (minimum order qty. 10)
• 50.80mm x 2.03mm (minimum order qty. 10) (not currently FIA homologated)

• 50.80mm x 2.64mm (minimum order qty. 10) (not currently FIA homologated)

• 50.80mm x 3.25mm (minimum order qty. 10) (not currently FIA homologated)

 Specifications

• 2 x pieces (upper and lower)
• Supplied with fixing bolts

• Manufactured from EN3B/080A15 Steel

• FIA homologated joints are only compliant when used in FIA or MSUK homologated ROPS design.

Ordering Details

During busy periods, lap joints can have a manufacturing lead time of up to 5 weeks from the point of order. If your order is time sensitive, please contact us prior to order.
